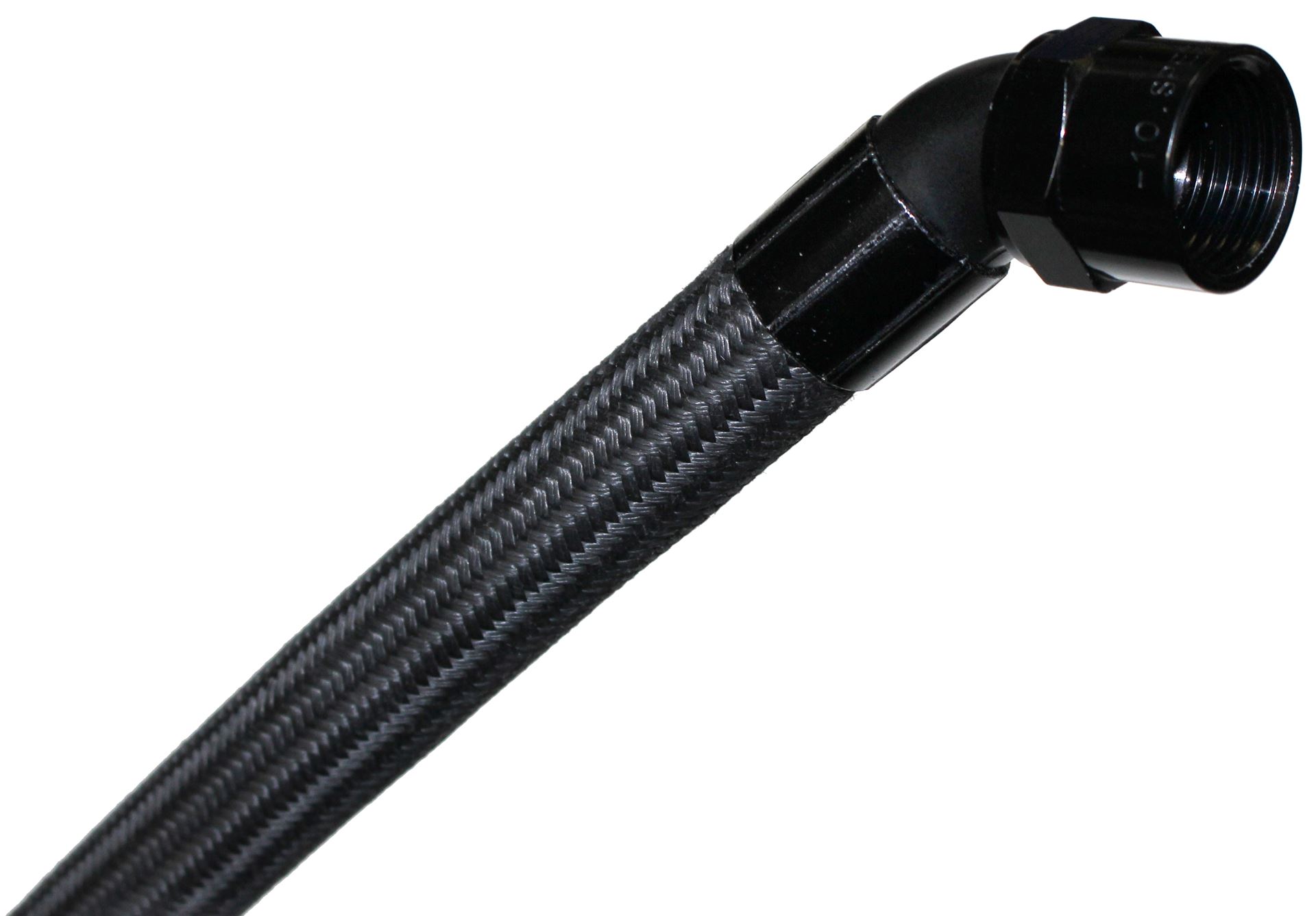

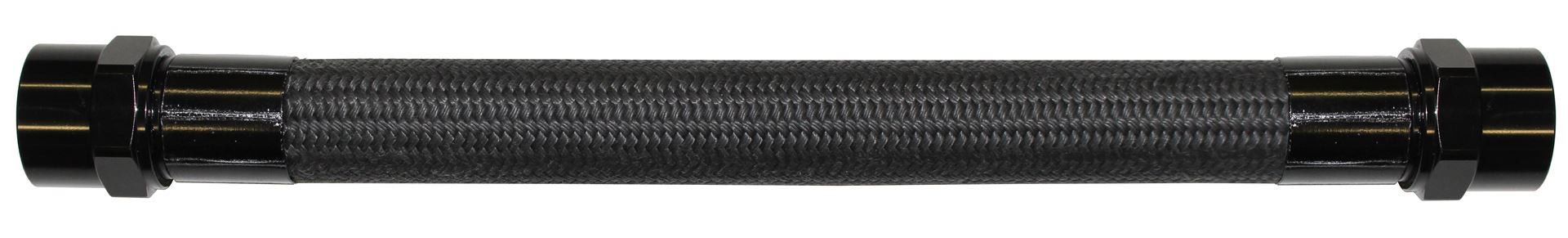

SF-Lite is the newest addition to the Speedflow range, and this is the most technologically advanced hose system available.



The Hose has carbon impregnated anti-static PTFE inner tube that is manufactured with a smoth bore and convolutions on the outside which allows for improved flexibility. Being a smooth bore hose, there are no voids that can create turbulence or trap debris as commonly found with fully convoluted hose.



SF-Lite utilises the new crimp system, and leightweight hose end series. The majority of the angled hose ends are made from a unique one piece formed bend that offers the most compact hose end on the market with exceptional strength and light weight.



The SF-Lite hose, is leight weight, abrasion and heat resitant. The working pressure rating will be reduced by 1% per 1C at temps above 130C up to a maximum of 180C.

Size ID (mm) OD (mm) Operating Pressure (psi) Burst Pressure (psi) Weight (Kg/M) Bend Radius (mm) Stock Code Price Quantity
-04 6.8 9.6 900 2750 0.056 38.0 550-04 $129.00
-06 10.00 13.5 810 2500 0.095 50.8 550-06 $129.00
-08 13.6 17.5 610 1850 0.135 76.2 550-08 $184.00
-10 16.7 21.0 510 1550 0.215 101.6 550-10 $237.00
-12 19.8 24.1 420 1260 0.250 127.0 550-12 $319.40
-16 26.4 31.3 406 1200 0.370 152.4 550-16 $346.05

SF-Lite is the newest addition to the Speedflow range, and this is the most technologically advanced hose system available.



The Hose has carbon impregnated anti-static PTFE inner tube that is manufactured with a smoth bore and convolutions on the outside which allows for improved flexibility. Being a smooth bore hose, there are no voids that can create turbulence or trap debris as commonly found with fully convoluted hose.



SF-Lite utilises the new crimp system, and leightweight hose end series. The majority of the angled hose ends are made from a unique one piece formed bend that offers the most compact hose end on the market with exceptional strength and light weight.



The SF-Lite hose, is leight weight, abrasion and heat resitant. The working pressure rating will be reduced by 1% per 1C at temps above 130C up to a maximum of 180C.
